Offline Air Cooled Oil Cooling Systems
Offline Air Cooled Oil Cooling Systems – Independent oil cooling & filtration (Dedicated cooling circuit for improved oil temperature control)
Offline Air Cooled Oil Cooling Systems
Independent oil cooling & filtration system

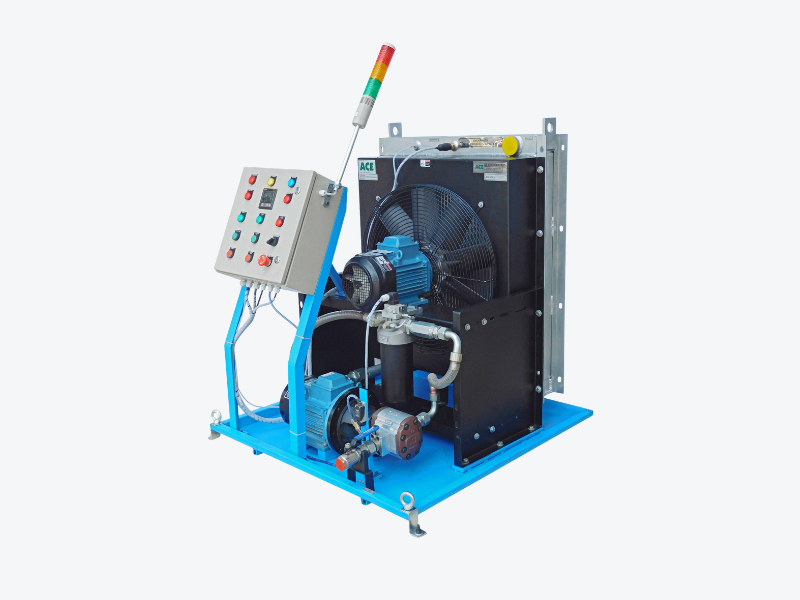

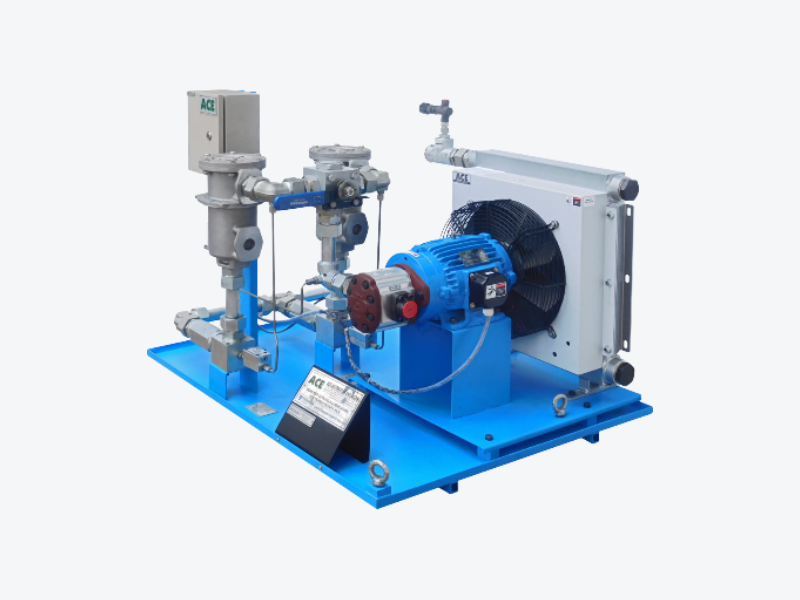

Coolace offline air cooled oil cooling systems are standalone units designed to cool and filter hydraulic oil independently of the main system circuit. These systems ensure stable oil temperatures, improved cleanliness, and extended component life even in high- load or continuous-duty operations.
Whether you're operating CNC machines, hydraulic power packs, or heavy industrial equipment, our AC Series coolers provide reliable thermal management your operations demand. With over 33+ years of engineering excellence, ACE Oil Coolers continues to set the standard in industrial cooling solutions.
Request a QuoteKey Features
Discover what makes the Offline Air Cooled Oil Cooling Systems the preferred choice for industrial cooling applications
Independent cooling unit/circuit
Integrated oil filtration
High efficiency air cooled oil cooler
More heat dissipation
Better equipment life
Minimise equipment breakdown & spares consumption
Allows extra work loading/handling
Technical Specifications – Offline Air Oil Cooling Systems Description:
Review the model-wise technical specifications of our offline air cooled oil cooling systems, including cooling capacity, oil flow rate, motor details, and operating parameters for accurate system selection.
| Model | Thread BSPT | Oil Flow (L/min) | Working Pressure (BAR) | Capacity (Kcal/Hr) ΔT=30°C | Dimension (L × H × W) mm |
|---|---|---|---|---|---|
| AH-0608 | 1/2" | 3–40 | 20 | 1300 | 305 × 195 × 115 |
| AH-0608L | 1/2" | 3–40 | 20 | 2500 | 405 × 195 × 115 |
| AH-1012 | 3/4" | 7–100 | 20 | 5100 | 421 × 316 × 162 |
| AH-1215 | 1" | 20–100 | 20 | 7400 | 520 × 368 × 210 |
| AH-1418 | 1" | 30–100 | 20 | 10100 | 570 × 422 × 210 |
| AH-1428 | 1 1/4" | 30–250 | 20 | 11400 | 575 × 410 × 280 |
| AH-1490 | 1 1/2" | 30–250 | 20 | 19000 | 490 × 620 × 300 |
| AH-1890 | 1 1/2" | 30–250 | 20 | 21350 | 490 × 620 × 300 |
| AH-1890 | 2" | 30–300 | 20 | 28000 | 610 × 784 × 400 |
| AH-2432 | 2" | 30–300 | 20 | 43000 | 888 × 942 × 640 |
| AH-2583 | 2 1/2" | 30–300 | 20 | 67000 | 850 × 1160 × 620 |
| AH-3042 | 2" | 25–450 | 20 | 90000 | 1230 × 1420 × 950 |
| AH-3550 | 2" | 30–400 | 20 | 80000 | 1200 × 1250 × 950 |
| AH-3655 | 2" | 30–450 | 20 | 105000 | 1200 × 1250 × 950 |
| Model | Thread BSPT | Oil Flow (L/min) | Working Pressure (BAR) | Capacity (Kcal/Hr) ΔT=30°C | Dimension (L × H × W) mm |
|---|---|---|---|---|---|
| AW-0608 | 1/2" | 1–20 | 15 | 750 | 310 × 203 × 105 |
| AW-0608L | 1/2" | 1–20 | 15 | 1250 | 411 × 203 × 105 |
| Model | Thread BSPT | Oil Flow (L/min) | Working Pressure (BAR) | Capacity (Kcal/Hr) ΔT=30°C | Dimension (L × H × W) mm |
|---|---|---|---|---|---|
| AL-0608 | 3/8" | 1–10 | 7.5 | 750 | 250 × 235 × 110 |
Typical Applications
Our AC Series coolers serve diverse industries and applications worldwide
Gear Box
Independent oil cooling systems for industrial gearbox lubrication circuits

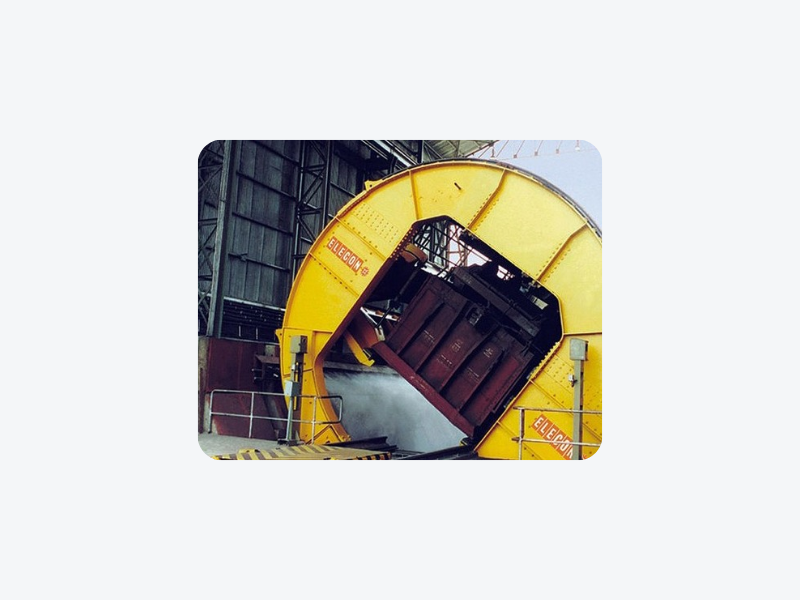

Wagon Tippers
Reliable cooling for hydraulic systems in heavy duty wagon tipplers

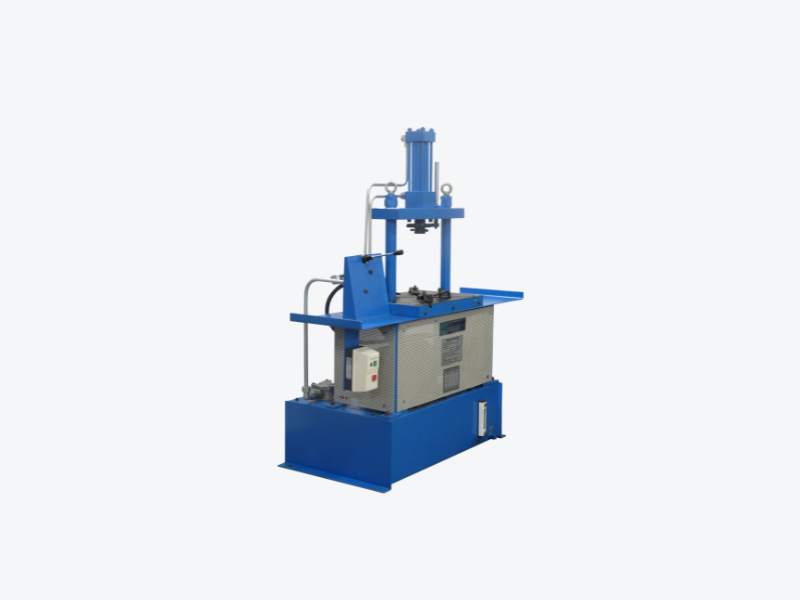

Hydraulic Presses
Continuous oil cooling for high pressure hydraulic press applications

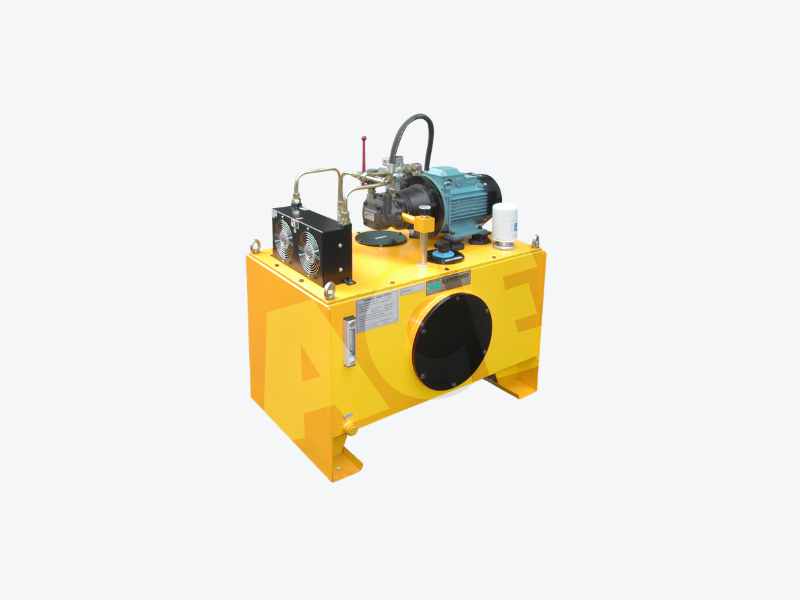

Hydraulic Systems
Efficient offline cooling for industrial hydraulic systems and power packs

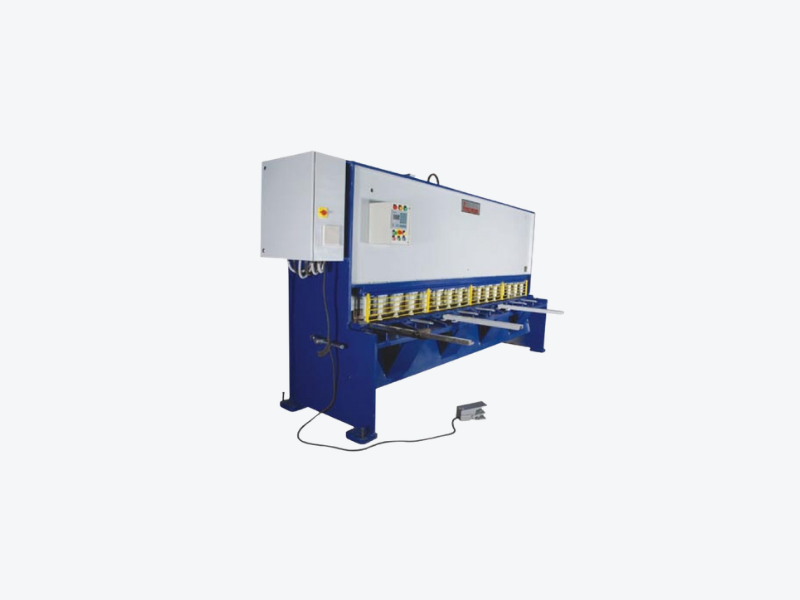

Shearing Machines
Stable oil temperature control for hydraulic shearing machine operations
Cement
Offline oil cooling solutions for continuous cement plant machinery

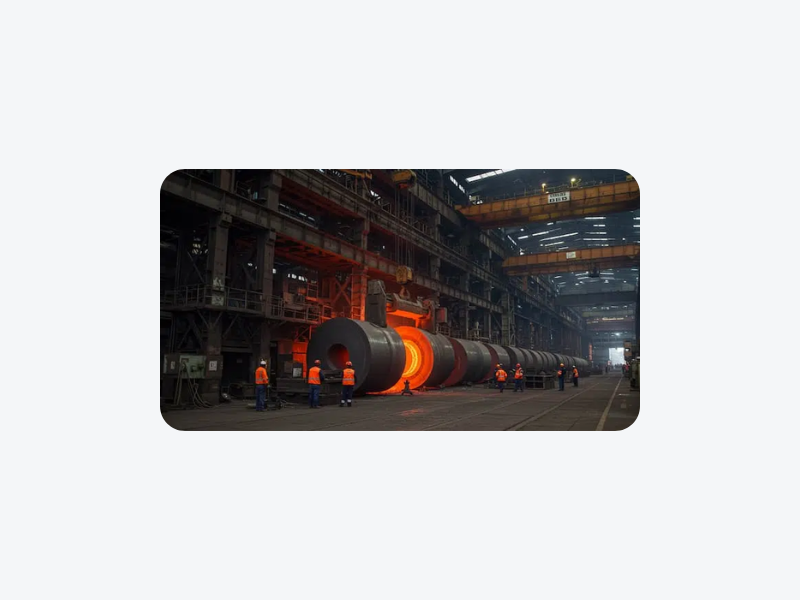

Steel
Heavy duty cooling systems for high temperature steel plant equipment

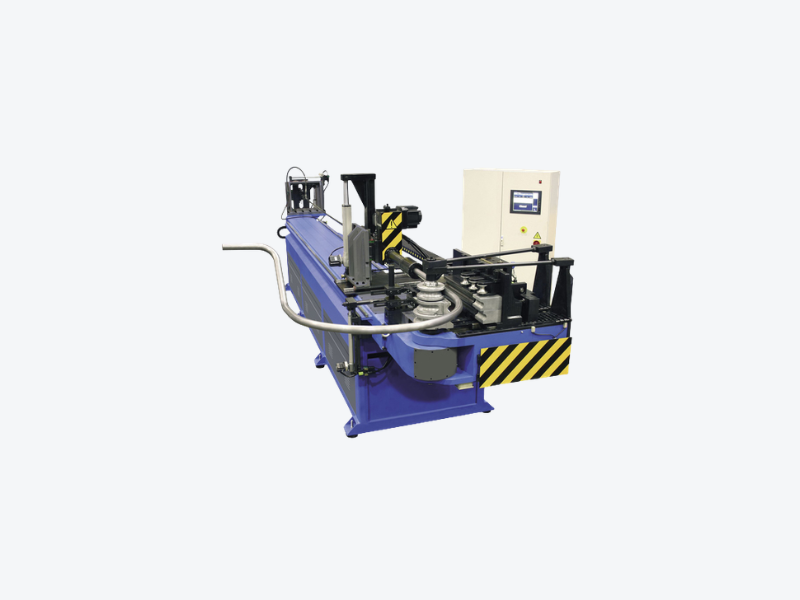

CNC Pipe Bending Machine
Precision oil cooling for CNC pipe bending hydraulic systems

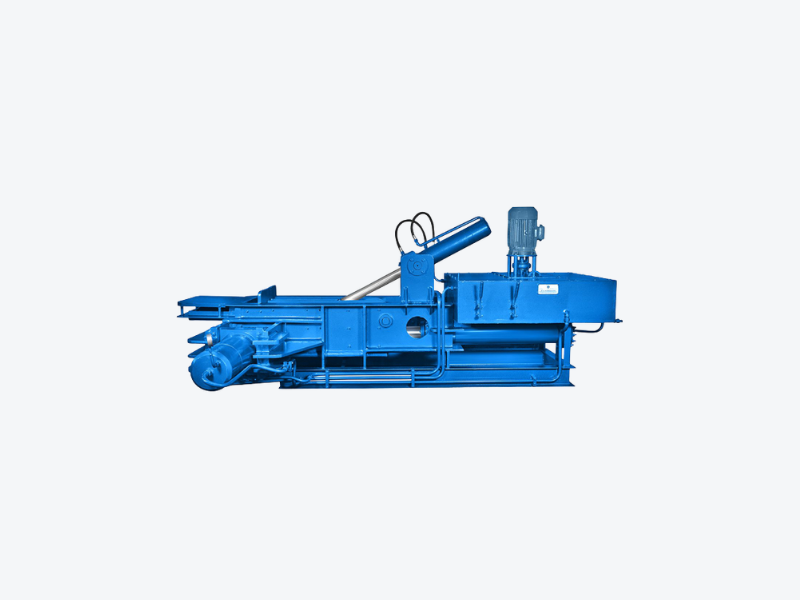

Scrap Baling Machine
Reliable cooling for hydraulic systems in scrap baling machines
