DC Series – DC Motor Driven Air Cooled Oil Coolers
DC motor driven air cooled oil coolers Reliable oil cooling for Mobile, battery Operator and Off Grid Hydraulic System.
DC Series designed for Mobile and
Remote Application

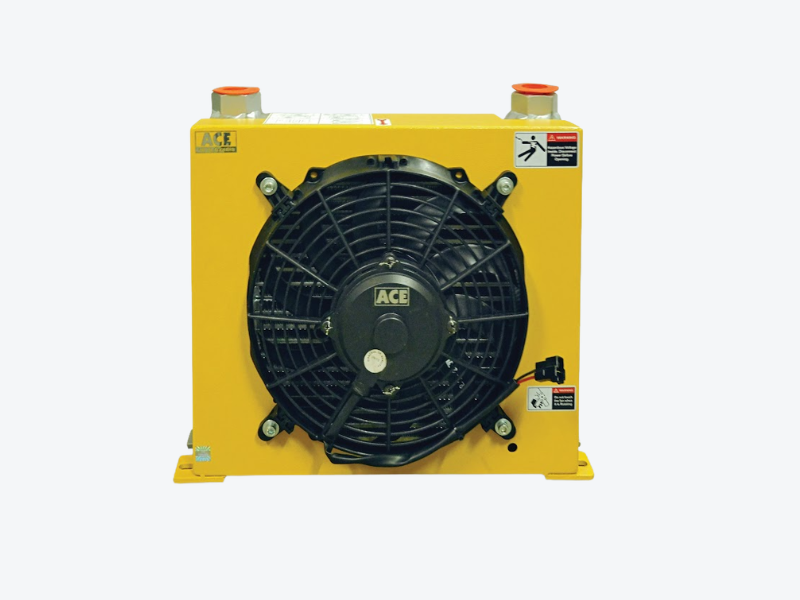

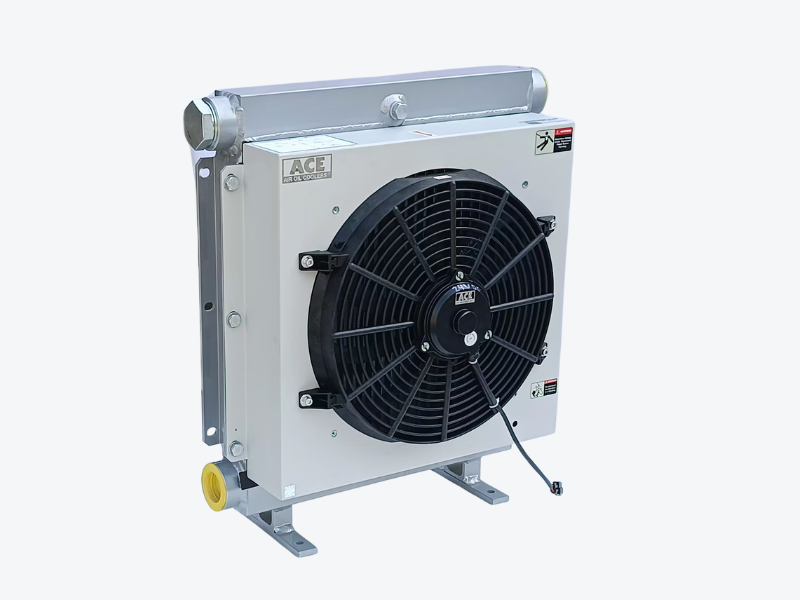

Coolerae DC Series air coolers are engineered with high efficiency aluminium fins core and DC motor driven fans. These coolers are ideal for mobile machinery, construction equipment and applications where AC power is unavailable.
DC Series coolers maintain hydraulic oil temp even in continuous-duty
mobile operations. The DC fan system allows direct use with battery-powered
vehicle electrical systems ensuring reliable cooling without external power
supply.
Available in multiple models to suit different oil flow rates and cooling capacities.
Key Features
Discover what makes the DC Series the preferred choice for Mobile cooling applications
Peak Performance
Smooth Operations
Increase Equipment Life
Easy to Install
Less Maintenance
DC Series - Technical Specifications
Available in multiple models to suit different oil flow rates and cooling capacities.
(Available in 12 VDC & 24 VDC)
| Model | Thread BSPT | Oil Flow (L/min) | Working Pressure (BAR) | Capacity (Kcal/Hr) ΔT=30°C | Dimension (L × H × W) mm |
|---|---|---|---|---|---|
| AH-0608 | 1/2" | 3–60 | 20 | 1300 | 305 × 195 × 115 |
| AH-0608L | 1/2" | 3–60 | 20 | 2500 | 405 × 195 × 115 |
| AH-1012 | 3/4" | 20–100 | 20 | 5100 | 421 × 316 × 162 |
| AH-1215 | 1" | 20–100 | 20 | 7400 | 520 × 368 × 210 |
| AH-1418 | 1" | 30–100 | 20 | 10100 | 570 × 422 × 210 |
| AH-1428 | 1 1/4" | 30–250 | 20 | 11400 | 575 × 410 × 280 |
| AH-1490 | 1 1/2" | 30–250 | 20 | 19000 | 490 × 620 × 300 |
| AH-1680 | 1 1/2" | 30–250 | 20 | 23700 | 490 × 620 × 300 |
| AH-1890 | 2" | 30–300 | 20 | 28000 | 610 × 784 × 400 |
| Model | Thread BSPT | Oil Flow (L/min) | Working Pressure (BAR) | Capacity (Kcal/Hr) ΔT=30°C | Dimension (L × H × W) mm |
|---|---|---|---|---|---|
| AW-0608 | 1/2" | 1–20 | 15 | 1100 | 310 × 203 × 105 |
| AW-0608L | 1/2" | 1–20 | 15 | 1650 | 411 × 203 × 105 |
| Model | Thread BSPT | Oil Flow (L/min) | Working Pressure (BAR) | Capacity (Kcal/Hr) ΔT=30°C | Dimension (L × H × W) mm |
|---|---|---|---|---|---|
| AL 608 | 3/8" | 1–10 | 10 | 1150 | 250 × 235 × 110 |
Typical Applications
Our AC Series coolers serve diverse industries and applications worldwide
Backhoe Loader
Efficient oil cooling for hydraulic systems in backhoe loaders
Agriculture
Reliable oil cooling for agricultural machinery and mobile hydraulic equipment
Waste Management System
Durable oil cooling for hydraulic systems in waste management equipment
Water Sprinkler System
Efficient cooling for hydraulic pumps in water sprinkler systems
Construction
Robust oil cooling solutions for construction equipment and hydraulic systems
Concrete Pumps
High performance oil cooling for concrete pump hydraulic systems
EV
Compact oil cooling solutions for electric vehicle hydraulic and thermal systems
Need Selection / Sizing & Assistance?
Our technical experts are ready to help you select the right oil cooler for your specific application. Get personalized recommendations based on your flow rates, operating temperatures and installation requirements.
