AH Series

Air Cooled Heat Exchangers / Oil Coolers by Ace

AH Series of the Air Cooled Heat Exchangers / Oil Coolers by Ace are heavy duty plate fin heat exchangers / oil coolers that can be used for a variety of applications including gear boxes, lubrication systems, return line cooling of hydraulic systems, offline cooling etc..

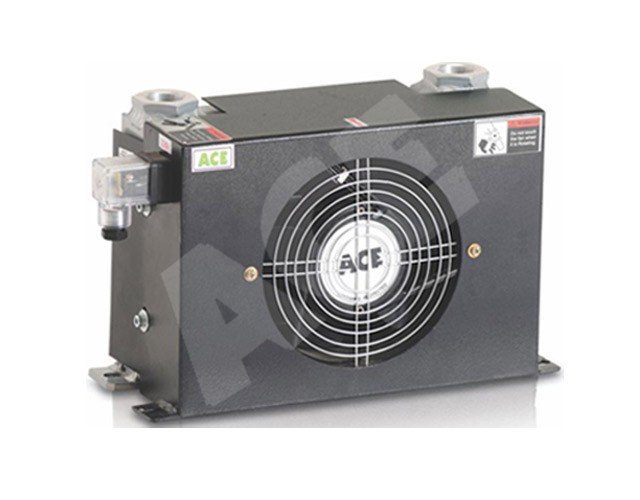

Air Cooled Heat Exchanger Model AH 0608®
Oil Flow – 3 -60 LPM
Oil Cooling Capacity – Upto 1300 Kcal/h (1.5 kW)

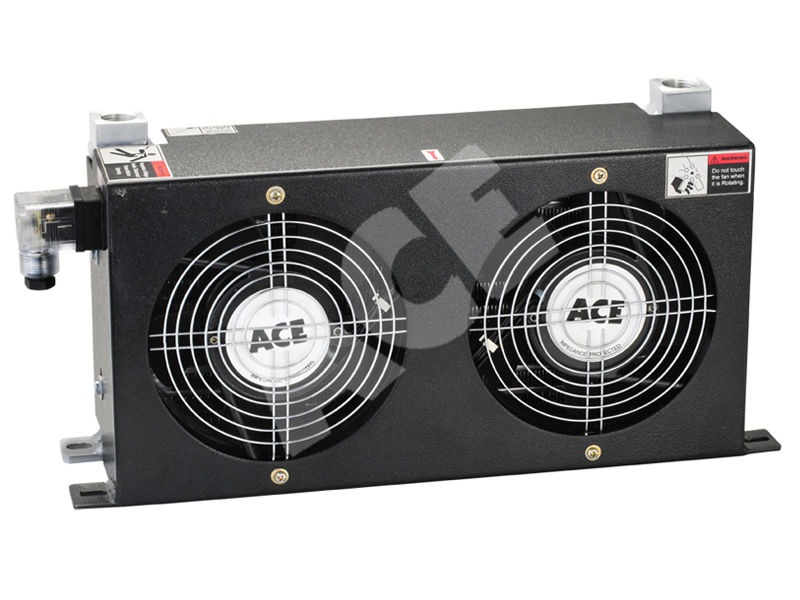

Air Cooled Heat Exchanger Model AH 0608®L
Oil Flow – 3-60 LPM
Oil Cooling Capacity – Upto 2500 Kcal/h (3 kW)

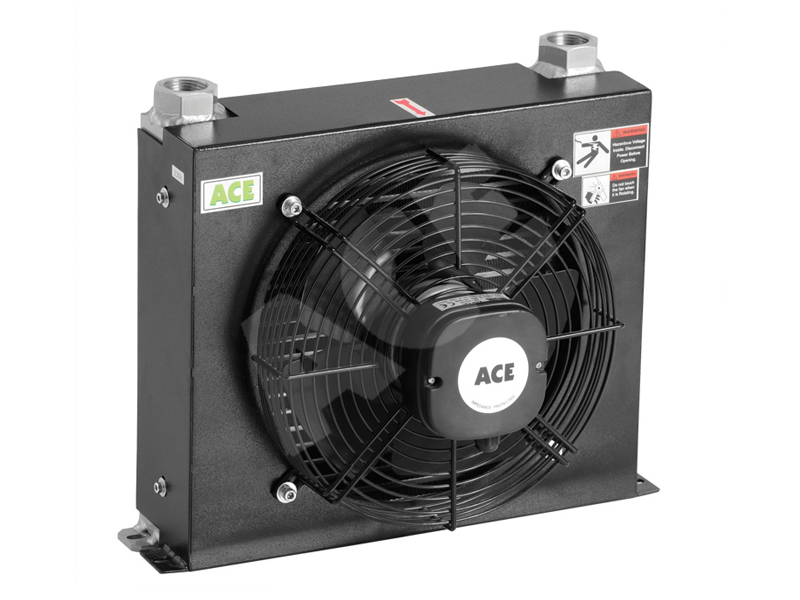

Air Cooled Heat Exchanger Model AH 1012®
Oil Flow – 20-100 LPM
Oil Cooling Capacity – Upto 5160 Kcal/h (6 kW)

Get Quote

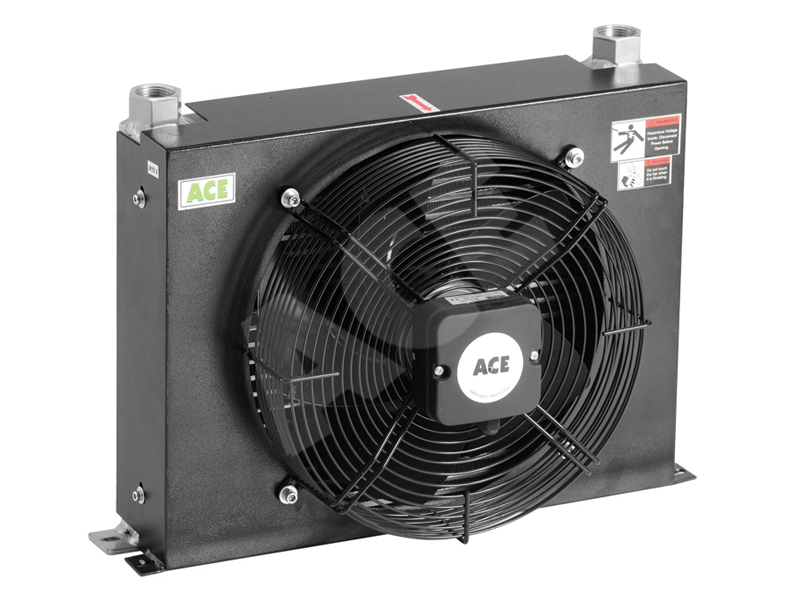

Air Cooled Oil Cooler Model AH 1215® 1P & 3P
Oil Flow -20-100 LPM
Oil Cooling Capacity – Upto 7410 Kcal/h (8.616 kW)

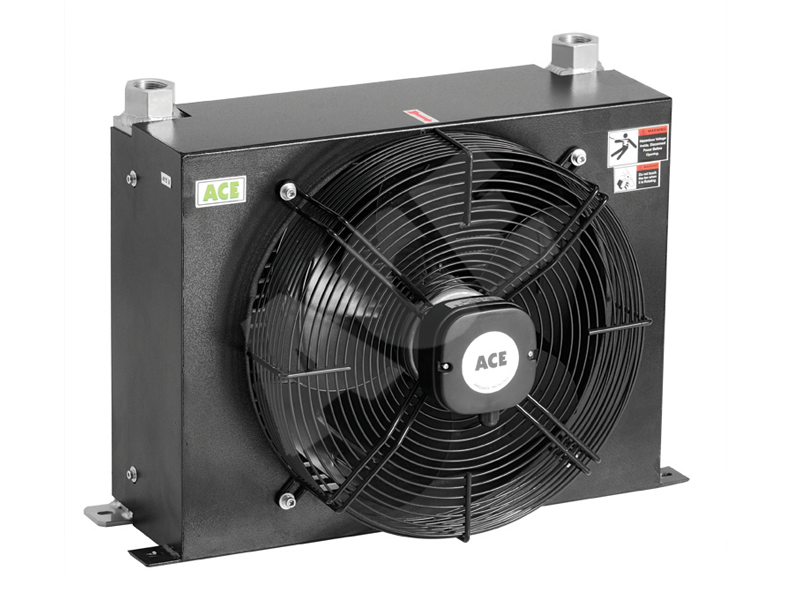

Air Cooled Oil Cooler Model AH 1418®
Oil Flow – 30-100
Oil Cooling Capacity – Upto10300 Kcal/h (11.976 kW)

Air Cooled Oil Cooler Model AH 1428®
Oil Flow- 30-200 LPM
Oil Cooling Capacity – Upto 11400 Kcal/h (13.4 kW)

Get Quote

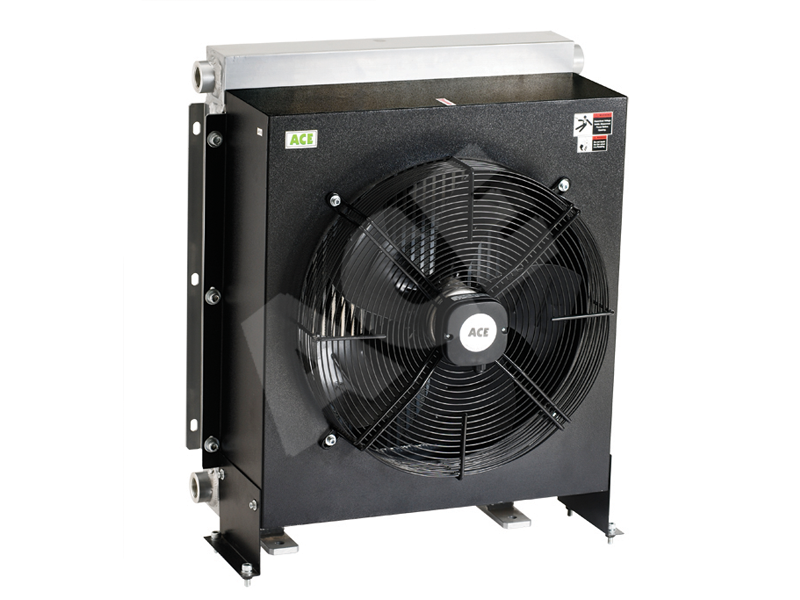

Air Cooled Oil Cooler Model AH 1490®
Oil Flow- 30-200 LPM
Oil Cooling Capacity – Upto 19000 Kcal/h (22.1 kW)

Air Cooled Oil Cooler Model AH 1680®
Oil Flow -30-350 LPM
Oil Cooling Capacity– Upto 23700 Kcal/h (27.6 kW)

Air Cooled Oil Cooler Model AH 1890®
Oil Flow – 30-350 LPM
Oil Cooling Capacity – Upto 27750 Kcal/h (32 kW)

Get Quote

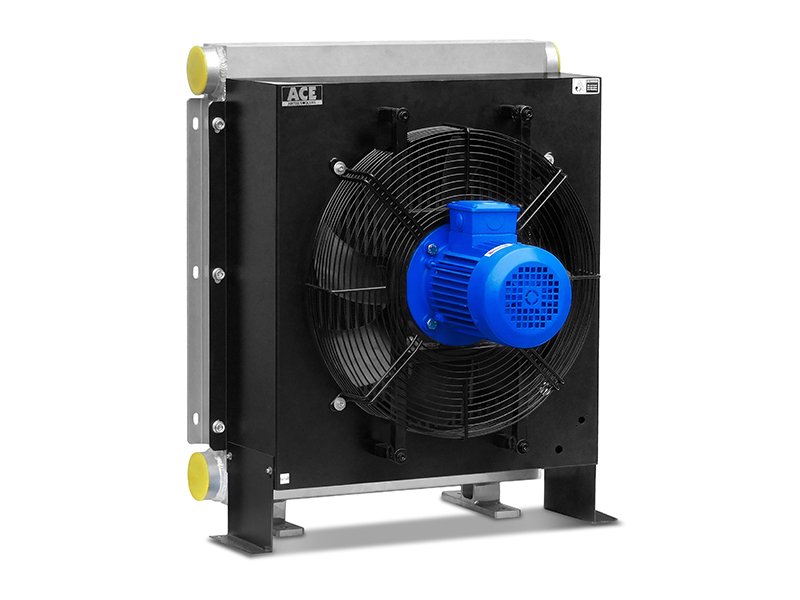

Air Cooled Oil Cooler Model AH 1890®T
Oil Flow – 30-350 LPM
Oil Cooling Capacity – Upto 29500 Kcal/h (33.7 kW)

Air Cooled Oil Cooler Model AH 2432
Oil Flow – 30-300 LPM
Oil Cooling Capacity – Upto 44000 Kcal/h (51.2 kW)

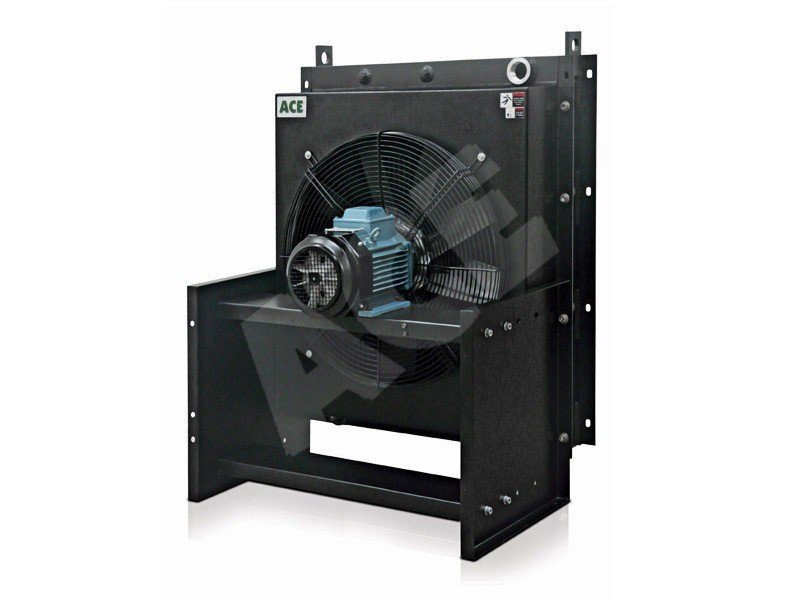

Air Cooled Oil Cooler Model AH 2583
Oil Flow – 30-400 LPM
Oil Cooling Capacity – Upto 57000 Kcal/h (66 kW)

Get Quote

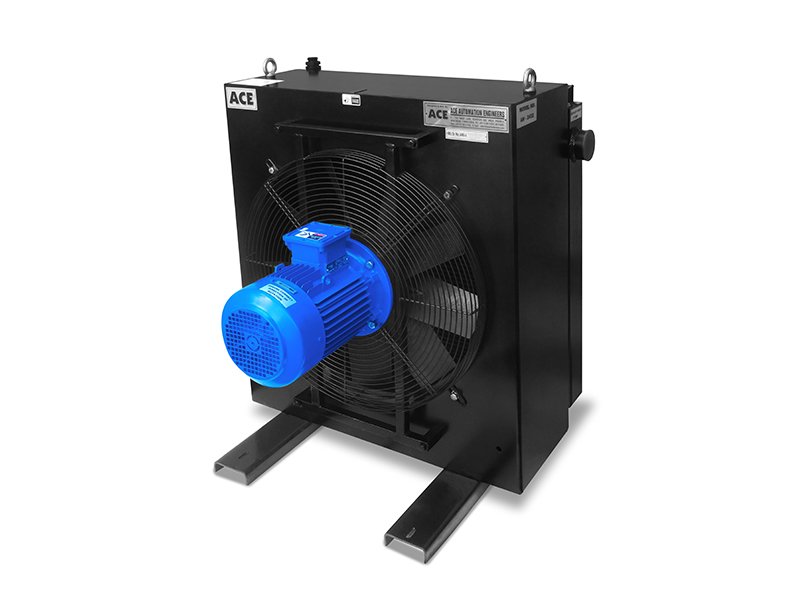

Air Cooled Oil Cooler Model AH 3044
Oil Flow – 25-400 LPM
Oil Cooling Capacity – Upto 58000 Kcal/h (67.4 kW)

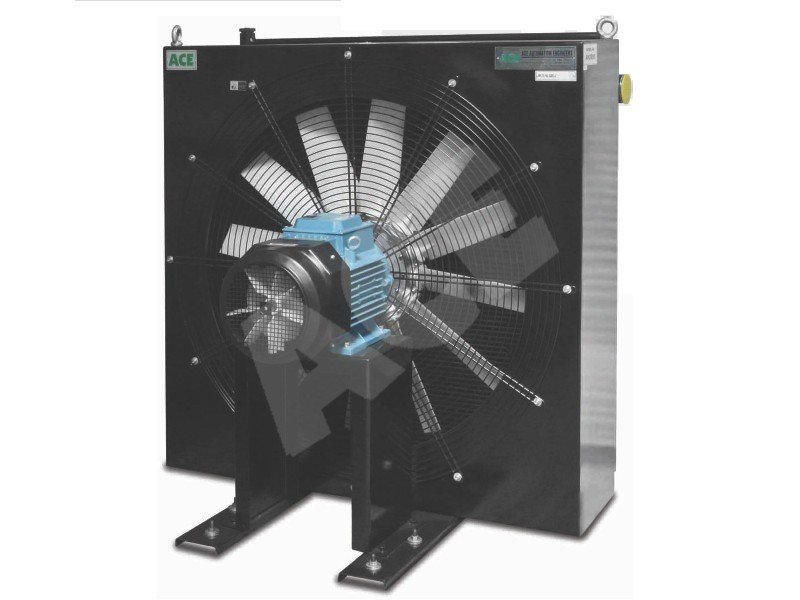

Air Cooled Oil Cooler Model AH 3650
Oil Flow –30-400 LPM
Oil Cooling Capacity – Upto 83500 Kcal/h (97.5 kW)

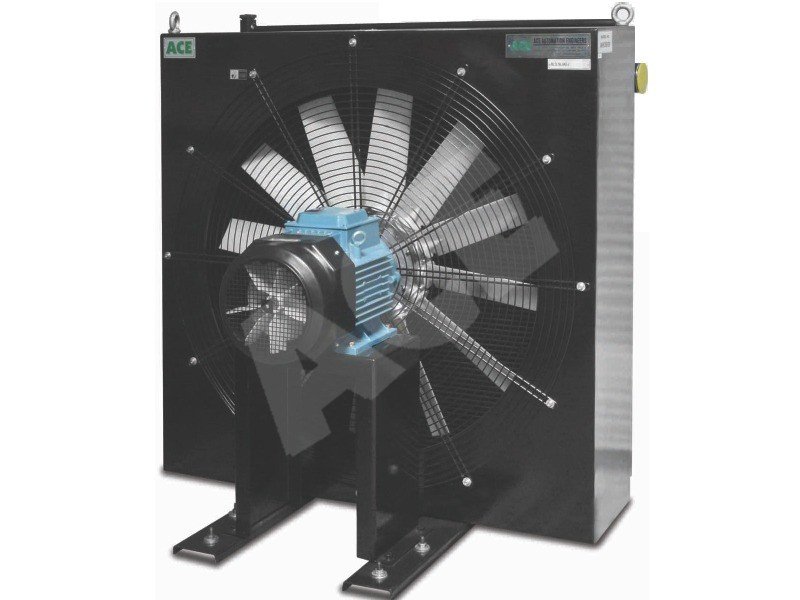

Air Cooled Oil Cooler Model AH 3655
Oil Flow –30-400 LPM
Oil Cooling Capacity – Upto 109650 Kcal/h (127.5 kW)
