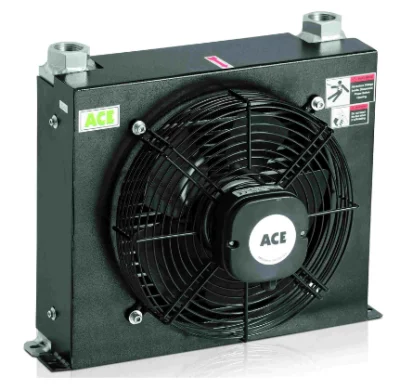

AC Series - AC Motor Driven Air Cooled Oil Coolers
High performance aluminium fin oil coolers designed for compact hydraulic power units and industrial machinery
Advanced Cooling Technology for
Industrial Excellence
The AC Series represents the pinnacle of air-cooled oil cooling technology. Engineered with precision and built to last, these coolers deliver exceptional heat dissipation performance while maintaining energy efficiency.
Whether you're operating CNC machines, hydraulic power packs, or heavy industrial equipment, our AC Series coolers provide reliable thermal management your operations demand.
Request a QuoteKey Features
Discover what makes the AC Series the preferred choice for industrial cooling applications
Easy to install
Cost effective
Efficient cooling
Reliable performance
Lower running cost per kW heat dissipation
AC Series - Technical Specifications
AC Series coolers are ideal for moderate to high cooling demands where space is limited. Available in multiple sizes & voltages.
| Model | Thread BSPT | Oil Flow (L/min) | Working Pressure (BAR) | Capacity (Kcal/Hr) ΔT=30°C | Dimension (L × H × W) mm |
|---|---|---|---|---|---|
| AH-0608 | 1/2" | 3–60 | 20 | 1300 | 305 × 195 × 115 |
| AH-0608L | 1/2" | 3–60 | 20 | 2500 | 405 × 195 × 115 |
| AH-1012 | 3/4" | 20–100 | 20 | 5100 | 421 × 316 × 162 |
| AH-1215 | 1" | 20–100 | 20 | 7400 | 520 × 368 × 210 |
| AH-1418 | 1" | 30–100 | 20 | 10100 | 570 × 422 × 210 |
| AH-1428 | 1 1/4" | 30–250 | 20 | 11400 | 575 × 410 × 280 |
| AH-1490 | 1 1/2" | 30–250 | 20 | 19000 | 490 × 620 × 300 |
| AH-1680 | 1 1/2" | 30–250 | 20 | 23700 | 490 × 620 × 300 |
| AH-1890 | 2" | 30–300 | 20 | 28000 | 610 × 784 × 400 |
| AH-2432 | 2" | 30–300 | 20 | 43000 | 888 × 942 × 640 |
| AH-2583 | 2 1/2" | 30–300 | 20 | 67000 | 850 × 1160 × 620 |
| AH-3044 | 2" | 25–400 | 20 | 90000 | 1230 × 1420 × 950 |
| AH-3650 | 2" | 30–400 | 20 | 80000 | 1200 × 1250 × 950 |
| AH-3655 | 2" | 30–400 | 20 | 105000 | 1200 × 1250 × 950 |
| Model | Thread BSPT | Oil Flow (L/min) | Working Pressure (BAR) | Capacity (Kcal/Hr) ΔT=30°C | Dimension (L × H × W) mm |
|---|---|---|---|---|---|
| AW-0608 | 1/2" | 1–20 | 15 | 1100 | 310 × 203 × 105 |
| AW-0608L | 1/2" | 1–20 | 15 | 1650 | 411 × 203 × 105 |
| Model | Thread BSPT | Oil Flow (L/min) | Working Pressure (BAR) | Capacity (Kcal/Hr) ΔT=30°C | Dimension (L × H × W) mm |
|---|---|---|---|---|---|
| AL 608 | 3/8" | 1–10 | 10 | 1150 | 250 × 235 × 110 |
Typical Applications
Our AC motor driven air cooled oil coolers are widely used in continuous-duty industrial applications, ensuring efficient heat dissipation, stable oil temperature, and reliable system performance.
Machine Tools - CNC/VMC/HMC
Precision oil cooling for machine tools and continuous machining operations

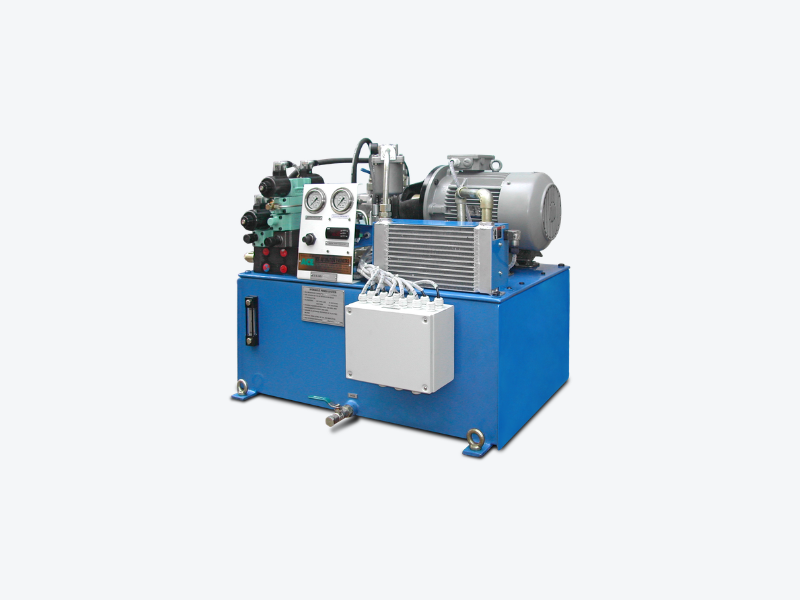

Hydraulic Power Packs
Efficient oil cooling for industrial hydraulic power pack systems

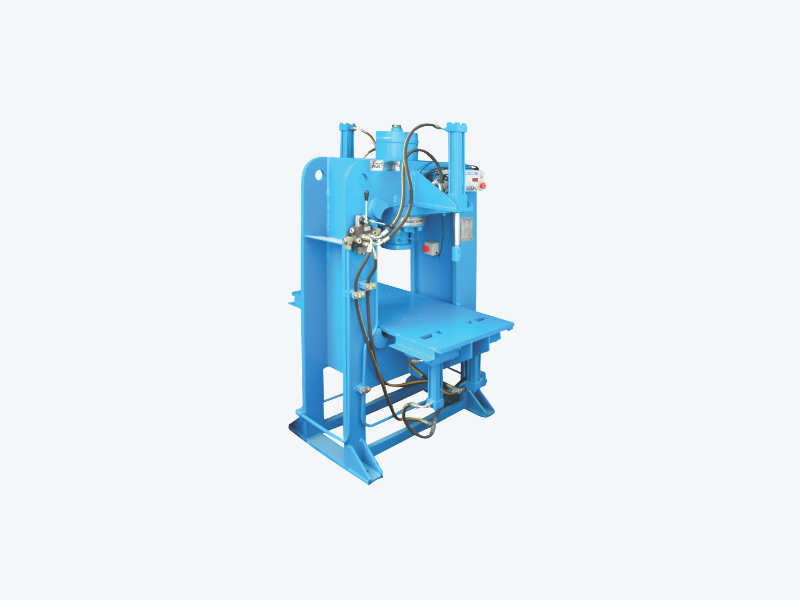

Hydraulic Presses
Reliable cooling for high pressure hydraulic press continuous operations

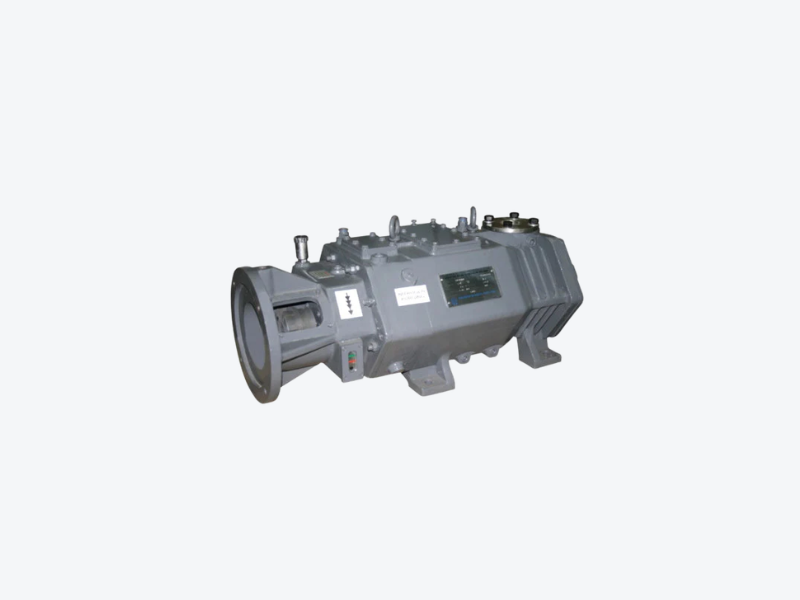

Vaccum Pumps
Stable oil cooling for vacuum pump lubrication and hydraulic systems

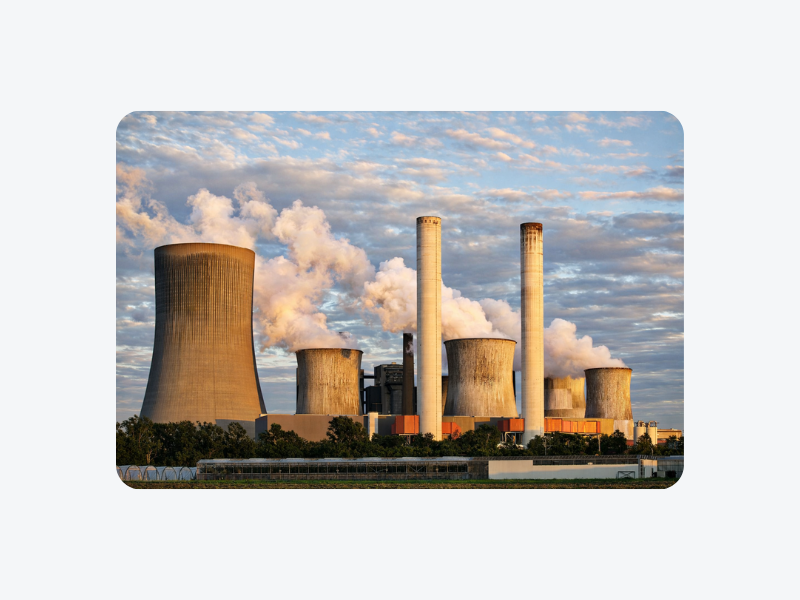

Power Plants
Advanced oil cooling solutions for continuous power generation equipment
Textile
Efficient cooling for hydraulic systems in textile processing machinery
Pharmaceuticals
Reliable oil cooling for precision equipment in pharmaceutical manufacturing processes
Gearboxes
Effective lubrication oil cooling for industrial gearbox performance and reliability
Need Selection / Sizing & Assistance?
Our technical experts are ready to help you select the right oil cooler for your specific application. Get personalized recommendations based on your flow rates, operating temperatures and installation requirements.
Talk to Our ExpertWhy Choose ACE Oil Coolers
Trusted by industries worldwide for reliable, high-performance cooling solutions
33+ Years of Engineering Excellence
Decades of expertise in designing and manufacturing premium oil cooling solutions.
High-Efficiency Cooling Solutions
Advanced technology ensuring maximum heat dissipation with minimal energy consumption.
Heavy-Duty Performance & Durability
Built to withstand the most demanding industrial environments and operating conditions.
Expert Support & Consultation
Dedicated technical team ready to assist with selection, installation, and maintenance.
ISO-Certified Manufacturing
Quality management systems ensuring consistent, reliable products every time.
Frequently Asked Questions
Find answers to common questions about our AC Series oil coolers
